Time-Tested Solution

Traditional Earthing Systems

Comprehensive traditional earthing solutions with GI Plates, Strips, Wires, and accessories for reliable electrical safety

Traditional Earthing System
Traditional Earthing System
GI Plate Earthing
Earthing Installation
Earthing Components

Reliable Electrical Safety Solution

SUPERMAX Traditional Earthing Systems provide a time-tested, reliable method for creating effective earth connections to protect electrical systems, equipment, and personnel from electrical faults and lightning strikes.

Our comprehensive traditional earthing solutions include all necessary components for a complete earthing system installation, ensuring maximum safety and compliance with electrical standards.

Maximum Safety

Protects against electrical shocks and equipment damage

Lightning Protection

Effective dissipation of lightning strikes and power surges

Proven Technology

Time-tested solution with decades of successful implementation

System Components

GI Plates Various sizes and thicknesses
G.I. Strips 25x3mm to 75x8mm
G.I. Wire 8 SWG to 14 SWG
Chamber Cover FRP & Cast Iron options
Backfill Material Salt, Charcoal, Nausadar
Earth Resistance As per IEEE & IEC standards
Complete System

System Components

All essential components for a complete traditional earthing installation

GI Plates

Galvanized Iron plates used as earth electrodes for effective grounding.

Specifications:

  • Material: Galvanized Iron
  • Sizes: 600x600mm to 1200x1200mm
  • Thickness: 3mm to 6mm
  • Corrosion resistant

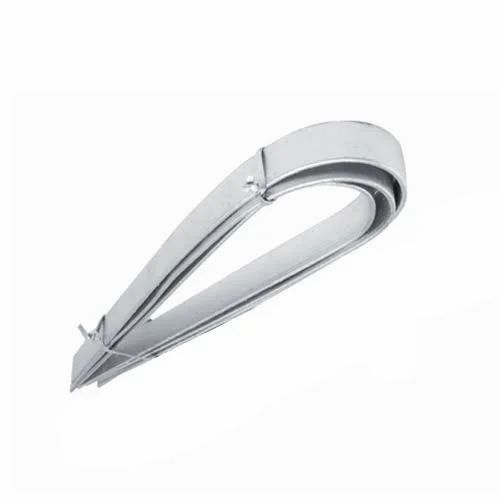

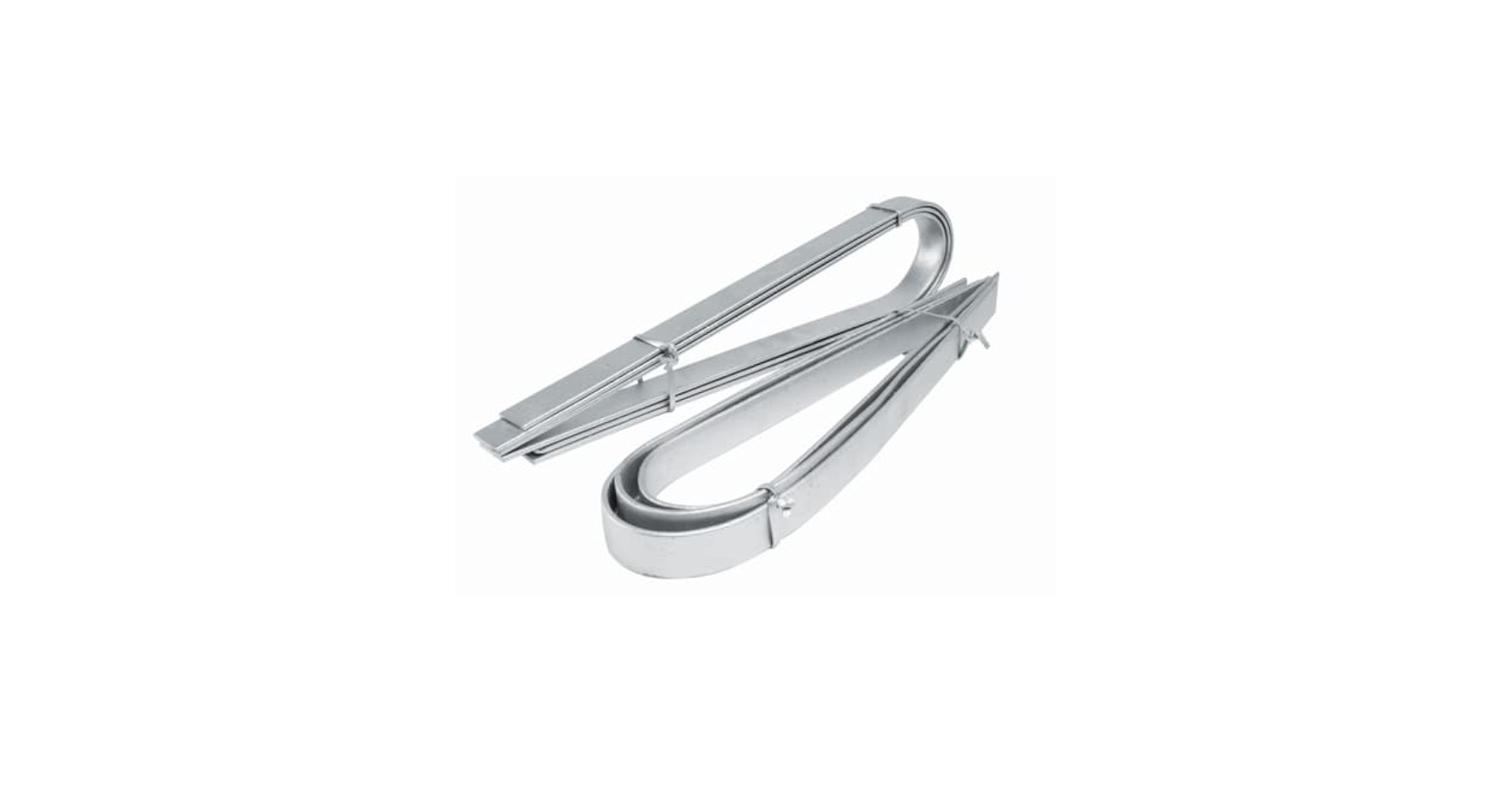

G.I. Strips

Used for interconnections between earth electrodes and equipment.

Specifications:

  • Material: Galvanized Iron
  • Sizes: 25x3mm to 75x8mm
  • High conductivity
  • Durable construction

G.I. Wire

Galvanized Iron wires for earthing connections and bonding.

Specifications:

  • Material: Galvanized Iron
  • Sizes: 8 SWG to 14 SWG
  • Flexible and durable
  • Corrosion resistant

Chamber Cover

Protective covers for earth pits in FRP and Cast Iron materials.

Specifications:

  • Materials: FRP & Cast Iron
  • Sizes: 300x300mm to 600x600mm
  • Weather resistant
  • Easy access for maintenance

Backfill Materials

Essential materials to maintain soil conductivity around earth electrodes.

Materials Included:

  • Salt (for moisture retention)
  • Charcoal (for conductivity)
  • Nausadar (chemical compound)
  • Bentonite (optional)

Accessories

Complete set of accessories for proper earthing system installation.

Includes:

  • Earth pits and chambers
  • Clamps and connectors
  • Maintenance tools
  • Installation guides
Why Choose Traditional Earthing

Key Advantages

Benefits of using SUPERMAX Traditional Earthing Systems

Proven Reliability

Decades of successful implementation across various industries with proven track record of safety and performance.

Easy Maintenance

Simple inspection and maintenance procedures with easily accessible components and clear testing points.

Cost-Effective

Lower initial investment compared to modern systems with readily available components and materials.

Easy Installation

Straightforward installation process with clear guidelines and widespread technical knowledge among electricians.

Effective Grounding

Provides low resistance path to ground, effectively dissipating fault currents and lightning strikes.

Compliance

Meets all national and international electrical safety standards including IEEE, IEC, and local regulations.

Where It's Used

Applications

SUPERMAX Traditional Earthing Systems are trusted across various sectors

Industrial Plants

Protection for heavy machinery and electrical equipment in manufacturing facilities

Residential Buildings

Safety earthing for apartments, housing complexes, and individual homes

Commercial Complexes

Office buildings, shopping malls, and commercial establishments

Power Substations

Critical earthing for electrical distribution and transmission systems

Railway Systems

Earthing for railway signaling, traction, and station infrastructure

Healthcare Facilities

Critical safety earthing for hospitals and medical equipment

Technical Installation

Installation & Technical Specifications

Proper installation is crucial for effective earthing system performance. Our technical team provides comprehensive guidance for optimal results.

  • Earth resistance should be less than 1 ohm for substations
  • Regular maintenance required for optimal performance
  • Backfill materials need periodic replenishment
  • Soil resistivity testing recommended before installation
  • Professional installation ensures compliance with standards
